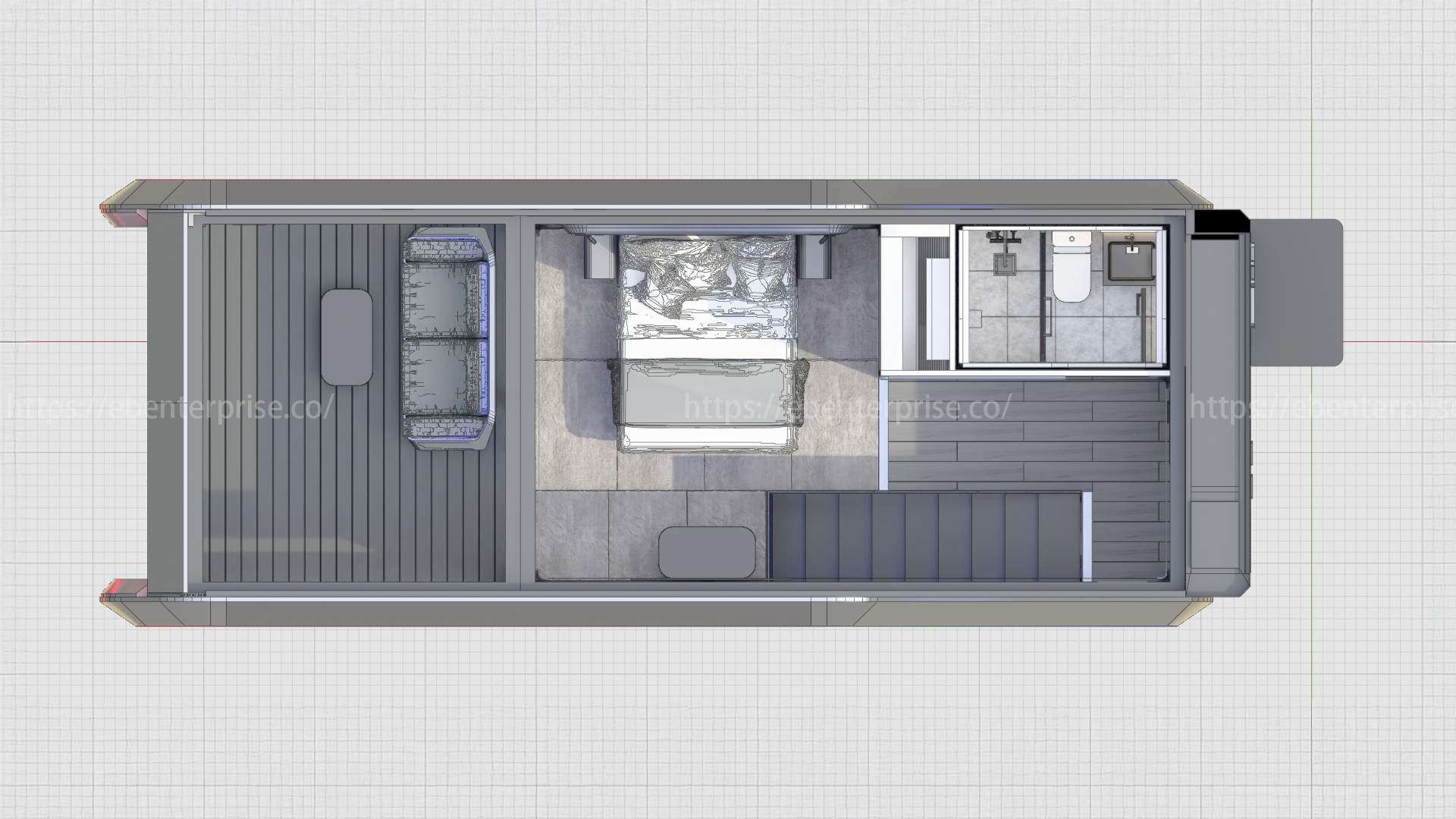

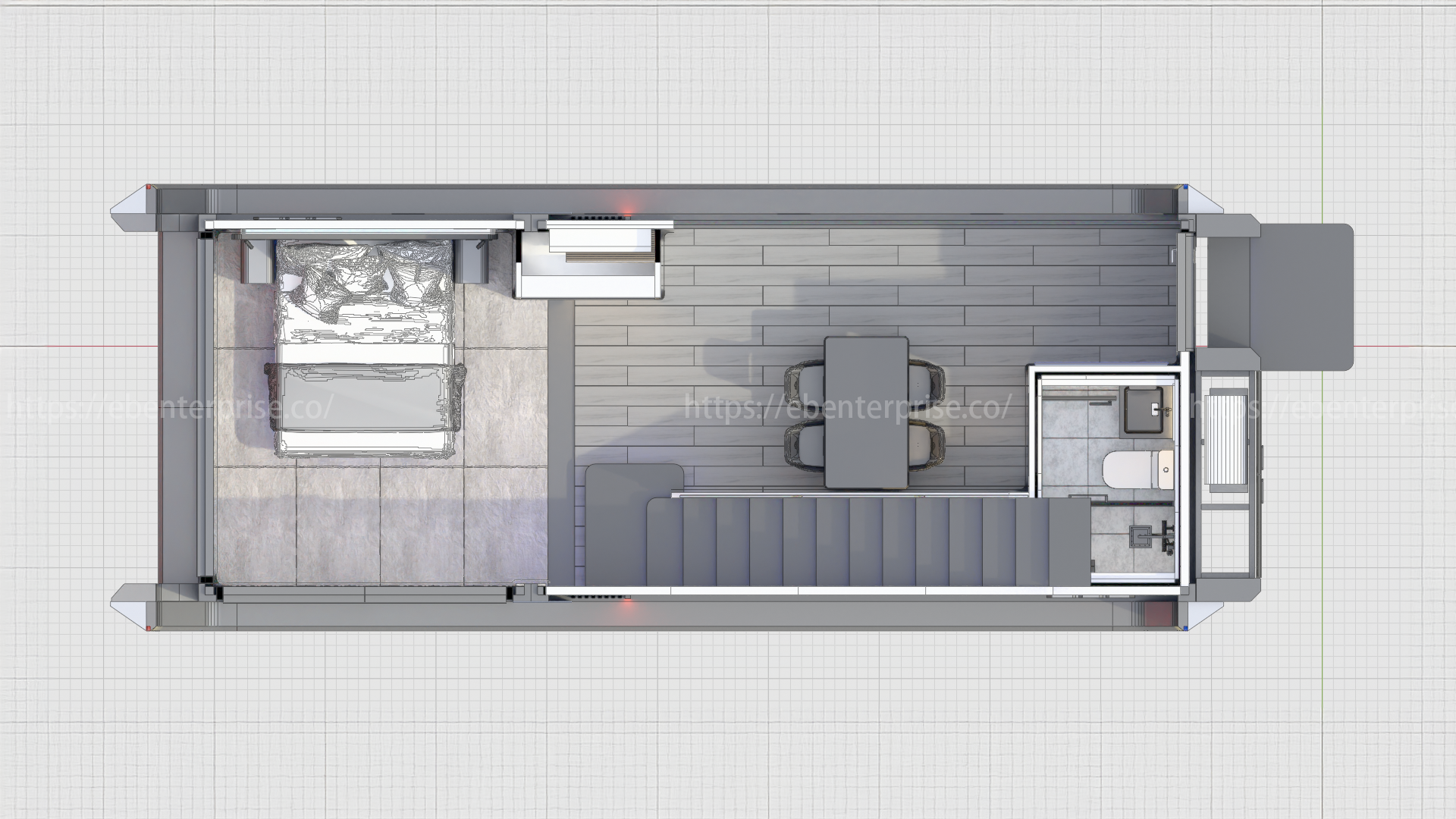

1) External dimension: L10.4M*W4M*H6.6M (L34’1″*W13’1″*H21’8″)
Internal dimension: L9M*W3.5M*H2.5M (L29’6″*W11’6″*H8’2″)
2) Cabin weight: 9600kgs
3) Steel structure: square tube (thickness: 3mm)
4) Partition wall: steel sheet
5) Wall: EPS Sandwich Panel/Rock wool board panel (thickness: 75mm)
6) Floor: Steel Sheet(3mm) & base Fiber Cement Board 18mm+carpets 15mm for all flooring area.
7) Roof: Steel Sheet(3mm) & EPS Sandwich thickness (50mm)

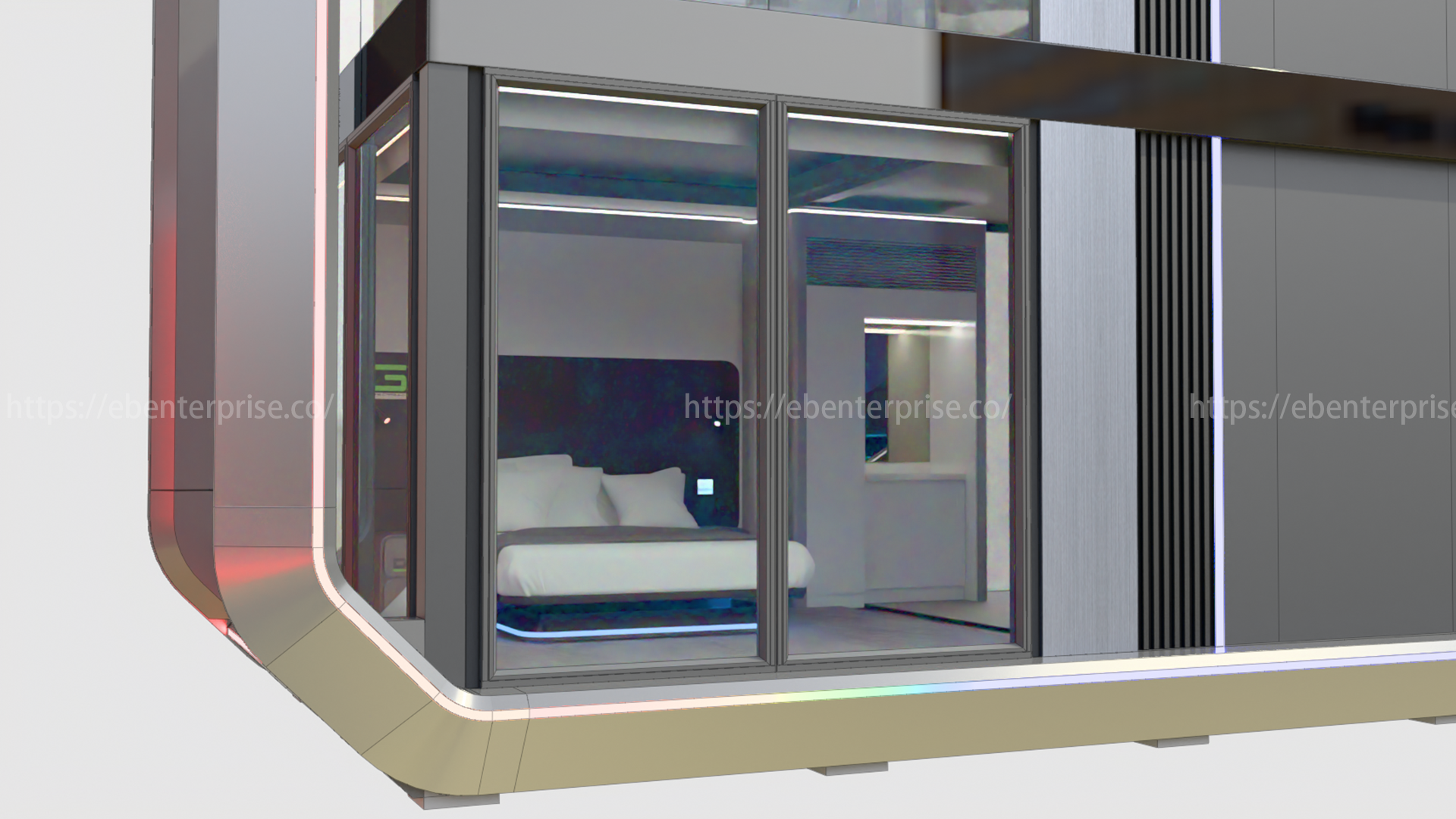

8) Windows: Aluminum alloy window frame+(6mm+12A+6mm) Double layer glazed LOW E tempered glass
9) Doors: Steel door/Glass door
10) Wind resistant: 0.6kN/㎡
11) Earthquake resistance: 7 grade
12) Fireproof: A calss /120 Mins
13) Floor load capacity: 3kN/㎡
14) Life span: 50 years
15.) Unit of loading into a 40 feet HQ container: 1.4 sets
