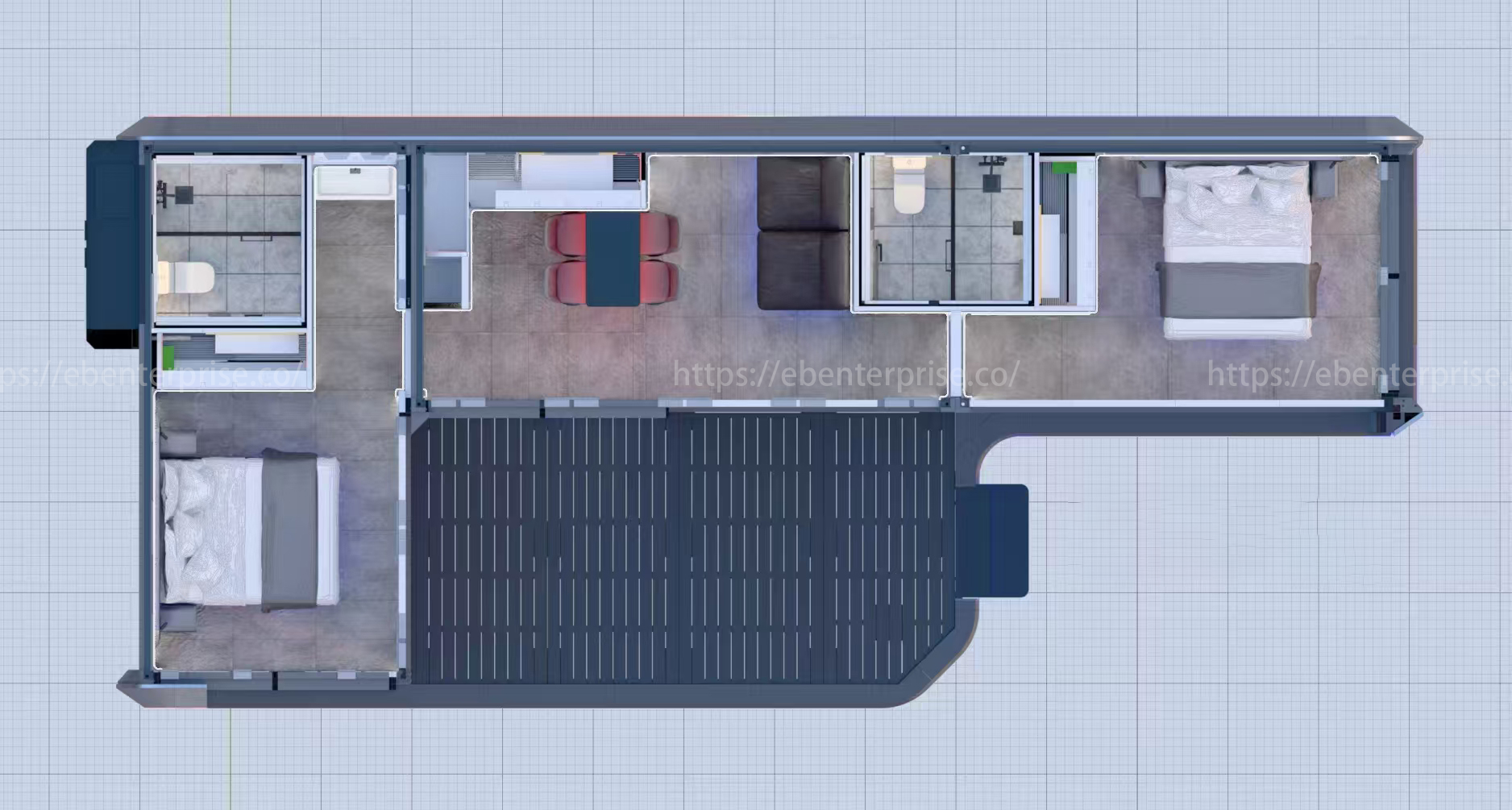

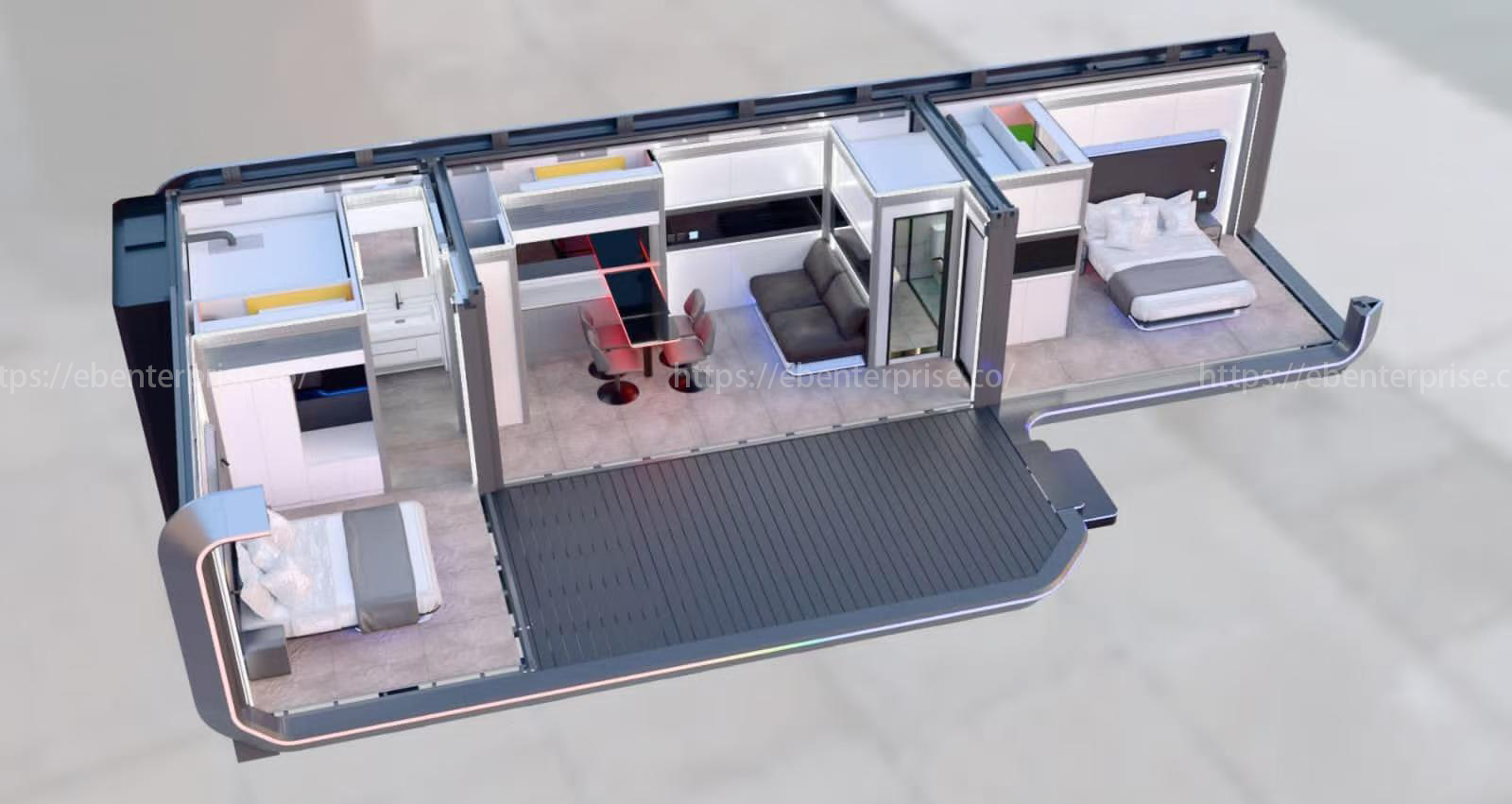

1) External dimension: L13.5M*W7M*H3.3M (L44’3″*W23’*H10’10”)
Internal dimension: L13M*W6M*H2.5M (L42’8″*W19’8″*H8’2″)
Indoor area:52.2m² (562sq.ft) Terrace area :18m² (194sq.ft)
2) Cabin weight: 10600kgs
3) Steel structure: square tube (thickness: 3mm)
4) Partition wall: steel sheet
5) Wall: EPS Sandwich Panel/Rock wool board panel (thickness: 75mm)
6) Floor: Steel Sheet(3mm) & base Fiber Cement Board 18mm+carpets 15mm for all flooring area.
7) Roof: Steel Sheet(3mm) & EPS Sandwich thickness (50mm)
8) Windows: Aluminum alloy window frame+(6mm+12A+6mm) Double layer glazed LOW E tempered glass
9) Doors: Steel door/Glass door
10) Wind resistant: 0.6kN/㎡
11) Earthquake resistance: 7 grade
12) Fireproof: A calss /120 Mins
13) Floor load capacity: 3kN/㎡
14) Life span: 50 years
15.) Unit of loading into a 40 feet HQ container: 1.3 sets
